Servo EMI filters
Author: admin Viewed: 20629【Close】
2017-07-03 09:51:05
Synmot filter is a EMI filter for servo drive, multilevel filter circuit, common mode interference suppression performance with excellent application, especially suitable for inverter and servo drive, can also be used in power electronic equipment and the need of three-phase power supply filter. Especially for servo applications serious interference, the conduction filtering effect, excellent properties and excellent low frequency attenuation common mode and differential mode rejection capability, can effectively protect the servo drive and servo system to improve the anti-interference ability.
For servo applications designed to interference, conduction filtering effect, excellent excellent properties and excellent low frequency attenuation common mode and differential mode rejection capability, can -effectively protect the servo drive and servo system to improve the anti-interference ability Common mode and differential mode inductors are made of new magnetic materials, capacitors and other electronic materials, reliable selection, quality assurance High absorptive capacity while relatively small leakage current Small size, light weight, easy installation The utility model is suitable for power electronics and complete sets of equipment needing three-phase power supply, The application characteristics of the servo drive system are optimized.Specification of SM 101 Frequency（MHZ）
CMIL(dB)
DMIL(dB)
Model
0.1
0.15
0.5
1
5
10
30
0.1
0.15
0.5
1
5
10
30
SM101H038A
18.5
26.6
44.8
49.4
43.2
37.5
26.4
23.2
27.1
50.6
55.1
38.5
32.7
24.0
SM101H050A
23.7
31.2
53.8
58.9
40.4
34.3
23.1
26.2
23.2
56.7
58.5
39.6
34.5
25.0
SM101H065A
23.7
31.2
53.8
58.9
40.4
34.3
23.1
26.2
23.2
56.7
58.5
39.6
34.5
25.0
SM101H085A
24.5
33.4
56.2
58.8
43.4
37.5
25.9
21.8
35.0
54.8
59.7
38.4
33.0
22.1
SM101H120A
24.5
33.4
56.2
58.8
43.4
37.5
25.9
21.8
35.0
54.8
59.7
38.4
33.0
22.1
SM101H150A
40.0
46.9
61.5
59.5
40.7
35.5
23.5
28.7
45.8
55.9
57.5
38.1
30.8
25.2
SM101H180A
40.0
46.9
61.5
59.5
40.7
35.5
23.5
28.7
45.8
55.9
57.5
38.1
30.8
25.2

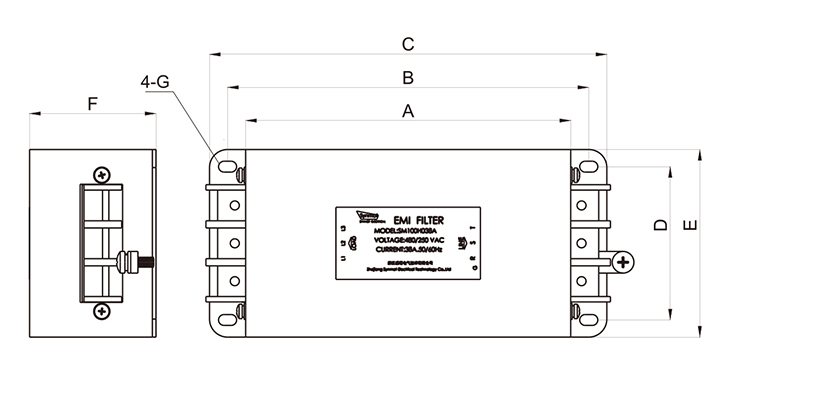

【V2.0】Model
Current
Mounting hole
Dimensions
Mounting hole size
Weight
KgA
B
D
A
C
E
F
G
SM101H038A
38
200
85
178
220
102
69
6×10
3
SM101H050A
50
200
85
178
220
102
89
6×10
3
SM101H065A
65
200
85
178
220
102
89
8×16
4
SM101H085A
85
277
85
218
303
138
89
8×16
5
SM101H120A
120
277
85
218
303
138
89
8×16
5
SM101H150A
150
345
138
304
371
188
99
8×16
9
SM101H180A
180
345
138
304
371
188
99
8×16
9
